 扭力限制器聯軸器 |
|
|
|
|

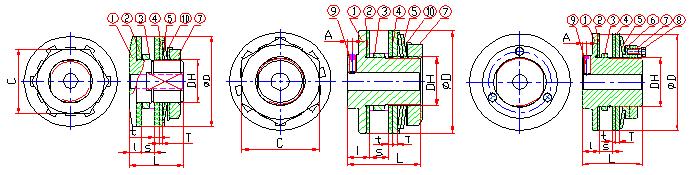

RTL50至RTL178的尺寸表
| 規格 |
扭距范圍 |
內孔 |
最大孔徑 |
襯環長度 |
襯環外徑 |
中心元件配合孔徑 |
D |
DH |
L |
I |
T |
t |
S (Max) |
A |
C |
調節螺母 |
調節螺栓 |
瑣緊螺釘 |
重量
(kg) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RTL50-1 |
0.3 ~ 1.0 |
8 |
14 |
3.8
6 |
30 |
-0.020
-0.041 |
30 |
+0.033
0 |
50 |
24 |
29 |
6.5 |
1.6 |
2.5 |
7 |
- |
36 |
M24 P1.0 |
- |
- |
0.248 |
RTL50-2 |
0.7 ~ 2.0 |
0.256 |
RTL65-1 |
0.7 ~ 2.8 |
10 |
22 |
6
8 |
41 |
-0.025
-0.050 |
41 |
+0.039
0 |
65 |
35 |
48 |
16 |
4 |
3.2 |
9 |
4 |
50 |
M35 P1.5 |
- |
M5 |
0.721 |
RTL65-2 |
1.4 ~ 5.5 |
0.739 |
RTL89-1 |
2.0 ~ 7.6 |
17 |
25 |
6 8 9.5 14.5 |
49 |
-0.025
-0.050 |
49 |
+0.039
0 |
89 |
42 |
62 |
19 |
4 |
3.2 |
16 |
5 |
65 |
M42 P1.5 |
- |
M6 |
2.417 |
RTL89-2 |
3.5 ~ 15.2 |
2.477 |
RTL127-1 |
4.8 ~ 21.4 |
20 |
42 |
6 8 9.5 14.5 |
74 |
-0.030
-0.060 |
74 |
+0.046
0 |
127 |
65 |
76 |
22 |
6 |
3.2 |
16 |
6 |
- |
M65 P1.5 |
M8 P1.0 3pcs |
M8 |
3.692 |
RTL127-2 |
9.0 ~ 42.9 |
3.858 |
RTL178-1 |
11.8 ~ 58.1 |
30 |
64 |
8 9.5 14.5 17 22 |
105 |
-0.036
-0.071 |
105 |
+0.054
0 |
178 |
95 |
98 |
24 |
7 |
3.2 |
29 |
6.5 |
- |
M95 P1.5 |
M10 P1.25 3pcs |
M10 |
9.033 |
RTL178-2 |
22.8 ~ 111 |
9.436 |
最小鏈輪齒數和襯環寬度 |
規格 |
中心元件孔徑(mm) |
鏈輪節和齒數 |
9.525-06B |
12.7-08B |
15.875-10B |
19.05-12B |
25.4-16B |
31.75-20B |
38.1-24B |
|
|
鏈輪最小齒數 |
襯環寬度(mm) |
鏈輪最小齒數 |
襯環寬度(mm) |
鏈輪最小齒數 |
襯環寬度(mm) |
鏈輪最小齒數 |
襯環寬度
(mm) |
鏈輪最小齒數 |
襯環寬度(mm) |
鏈輪最小齒數 |
襯環寬度(mm) |
鏈輪最小齒數 |
襯環寬度(mm) |
RTL50 |
30 |
20 |
3.8 |
16 |
6 |
|
|
|
|
|
|
|
|
|
|
RTL65 |
41 |
|
|
20 |
6 |
17 |
8 |
|
|
|
|
|
|
|
|
RTL89 |
49 |
|
|
26 |
6 |
21 |
8 |
18 |
9.5 |
15 |
14.5 |
|
|
|
|
RTL127 |
74 |
|
|
35 |
6 |
29 |
8 |
25 |
9.5 |
19 |
14.5 |
|
|
|
|
RTL178 |
105 |
|
|
|
|
39 |
8 |
33 |
9.5 |
26 |
14.5 |
21 |
17 |
18 |
22 |
|
