結構特點：
內裝、單端面、多彈簧、非平衡型、銷釘傳動
應用范圍:
溫度 : -20~200 ℃
力: ≤2.5Mpa
線速度 : ≤15m/sec
介質 :油類、水和一般腐蝕性液體

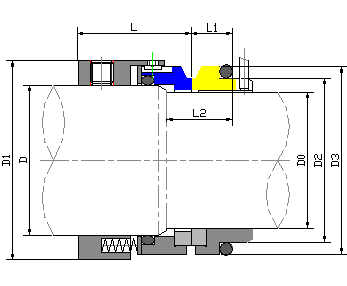

型號MODEL |
D0 |
D |
D1 |
D2 |
D3 |
L1 |
L |
119B-33 |
33 |
38 |
55 |
42 |
48 |
27 |
50.0 |
119B-35 |
35 |
40 |
57 |
44 |
50 |
28 |
50.0 |
119B-38 |
38 |
43 |
60 |
49 |
56 |
58 |
52.5 |
119B-40 |
40 |
45 |
62 |
51 |
58 |
28 |
52.5 |
119B-43 |
43 |
48 |
65 |
54 |
61 |
28 |
52.5 |
119B-45 |
45 |
50 |
67 |
56 |
63 |
28 |
52.5 |
119B-48 |
48 |
53 |
70 |
59 |
66 |
28 |
52.5 |
119B-50 |
50 |
55 |
72 |
62 |
70 |
33 |
57.5 |
119B-53 |
53 |
58 |
79 |
65 |
73 |
33 |
57.5 |
119B-55 |
55 |
60 |
81 |
67 |
75 |
33 |
57.5 |
119B-60 |
60 |
65 |
86 |
72 |
80 |
36 |
62.5 |
119B-65 |
65 |
70 |
91 |
77 |
85 |
36 |
62.5 |
119B-70 |
70 |
75 |
99 |
83 |
92 |
44 |
70.0 |
119B-75 |
75 |
80 |
104 |
88 |
97 |
44 |
70.0 |
119B-80 |
80 |
85 |
109 |
95 |
105 |
44 |
70.0 |
119B-85 |
85 |
90 |
114 |
100 |
110 |
48 |
75 |
| 119B-90 |
90 |
95 |
119 |
105 |
115 |
48 |
75 |
| 119B-95 |
95 |
100 |
124 |
110 |
120 |
48 |
75 |
| 119B-100 |
100 |
105 |
129 |
115 |
125 |
48 |
75 |
|
|
|
|
