SWC型十字軸式萬向聯軸器與相配件的聯接

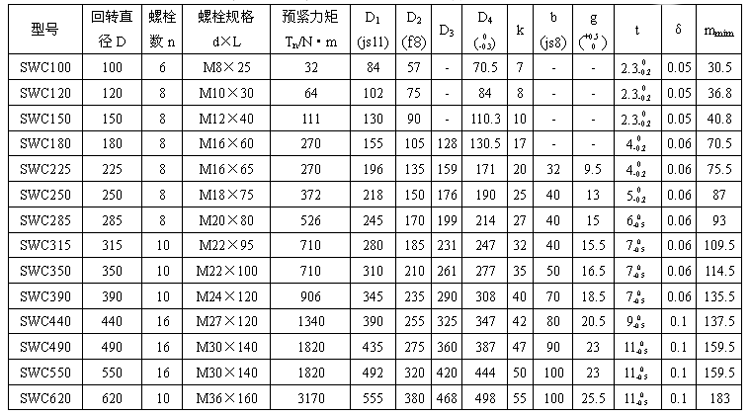

SWC型萬向聯軸器相配件的聯接尺寸及螺栓預緊力矩（JB/T5513-91）/mm

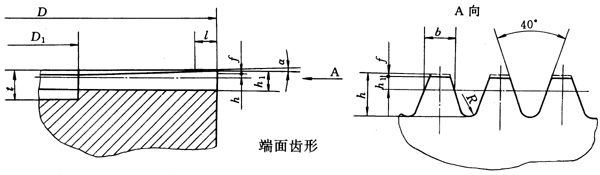

端面齒形尺寸及螺栓預緊力矩（JB/T5513-91）/mm
型號 |
回轉直
徑D |
螺栓
數n |
螺栓規格
d×L |
預緊力矩
Tn/N·m |
齒數Z |
b |
h |
h1 |
f |
R |
l |
t |
D---1 |
α |
SWC680 |
680 |
24 |
M24×140 |
850 |
120 |
8.909 |
4.734 |
12.452 |
0.29 |
2.5 |
10 |
14 |
550 |
1°40′ |
SWC780 |
780 |
24 |
M30×160 |
1700 |
144 |
8.513 |
3.961 |
11.366 |
0.52 |
2.5 |
15 |
13 |
640 |
2° |
SWC840 |
840 |
24 |
M36×180 |
2960 |
144 |
9.168 |
4.861 |
13.166 |
0.52 |
2.5 |
15 |
15 |
710 |
2° |
SWC920 |
920 |
24 |
M36×200 |
2960 |
144 |
10.042 |
6.061 |
15.566 |
0.52 |
2.5 |
15 |
17 |
760 |
2° |
SWC1000 |
1000 |
20 |
M48×240 |
7160 |
180 |
8.73 |
4.059 |
11.961 |
0.72 |
2.5 |
15 |
13 |
840 |
2°44′43″ |
SWC1100 |
1100 |
20 |
M48×260 |
7160 |
180 |
9.603 |
5.258 |
14.36 |
0.72 |
2.5 |
15 |
16 |
920 |
2°44′43″ |
SWC1200 |
1200 |
20 |
M56×280 |
11500 |
180 |
10.476 |
6.457 |
16.578 |
0.72 |
2.5 |
15 |
18 |
1000 |
2°44′43″ |
|
