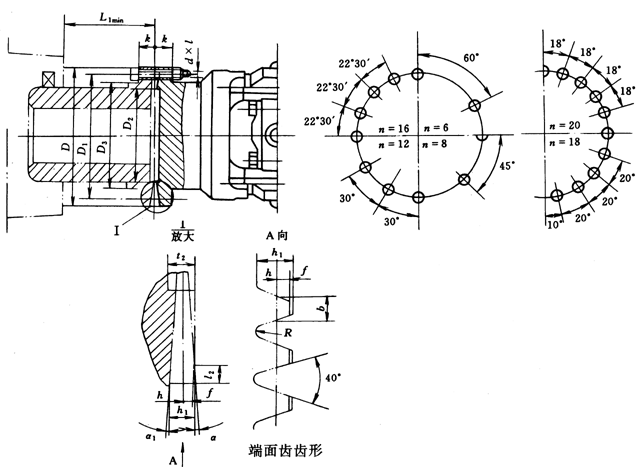

2）端面齒聯接是通過端面齒、高強度螺栓及螺母把兩端法蘭聯接在其他相配件上。
端面齒齒形尺寸及螺栓預緊力矩（JB/T3242-93）/mm
型號 |
回轉
直徑
D |
D1 |
D2 |
D3 |
k |
L1min |
螺栓
數n |
螺栓
規格
d×l |
預緊
力Tn/
N·m |
齒
數
Z |
b |
h |
h1 |
f |
R |
l2 |
t2 |
а |
а1 |
SWZ160 |
160 |
138 |
120 |
118 |
20 |
70 |
6 |
M12×60 |
120 |
36 |
6.972 |
3.13 |
9.46 |
0.6 |
2 |
5 |
12 |
6°50′20″ |
6°50′20″ |
SWZ190 |
190 |
165 |
140 |
145 |
25 |
80 |
6 |
M12×70 |
120 |
36 |
8.279 |
4.926 |
13.051 |
0.6 |
2 |
5 |
12 |
6°50′20″ |
6°50′20″ |
SWZ220 |
220 |
195 |
175 |
175 |
25 |
80 |
6 |
M12×70 |
120 |
48 |
7.194 |
3.585 |
10.07 |
0.45 |
2 |
5 |
15 |
5°8′12″ |
5°8′12″ |
SWZ260 |
260 |
235 |
210 |
215 |
30 |
90 |
6 |
M12×80 |
120 |
48 |
8.502 |
5.382 |
13.664 |
0.45 |
2 |
5 |
15 |
5°8′12″ |
5°8′12″ |
SWZ300 |
300 |
270 |
240 |
244 |
30 |
95 |
6 |
M16×80 |
295 |
60 |
7.05 |
4.576 |
11.872 |
0.36 |
2 |
5 |
15 |
4°6′49″ |
4°6′49″ |
SWZ350 |
350 |
320 |
280 |
294 |
35 |
105 |
6 |
M16×90 |
295 |
72 |
7.633 |
4.339 |
11.277 |
0.3 |
2 |
5 |
15 |
3°25′48″ |
3°25′48″ |
SWZ400 |
400 |
270 |
320 |
244 |
40 |
115 |
8 |
M16×100 |
295 |
72 |
8.724 |
4.338 |
13.112 |
0.2 |
2.25 |
5 |
16 |
3°25′48″ |
3°25′48″ |
SWZ425 |
425 |
385 |
340 |
352 |
42 |
130 |
8 |
M20×110 |
580 |
72 |
9.269 |
5.156 |
14.609 |
0.3 |
2.25 |
5 |
16 |
3°25′48″ |
3°25′48″ |
SWZ450 |
450 |
410 |
360 |
378 |
44 |
130 |
8 |
M20×110 |
580 |
96 |
7.361 |
5.905 |
9.367 |
0.45 |
2.25 |
10 |
16 |
2°34′26″ |
3°25′48″ |
SWZ500 |
500 |
450 |
400 |
412 |
47 |
140 |
12 |
M24×120 |
1000 |
96 |
8.18 |
4.259 |
11.617 |
0.45 |
2.25 |
10 |
16 |
2°34′26″ |
2°34′26″ |
SWZ550 |
550 |
500 |
440 |
462 |
50 |
150 |
12 |
M24×130 |
1000 |
96 |
8.997 |
5.382 |
13.864 |
0.45 |
2.25 |
10 |
18 |
2°34′26″ |
2°34′26″ |
SWZ600 |
600 |
550 |
480 |
512 |
55 |
160 |
16 |
M24×140 |
1000 |
120 |
7.852 |
3.899 |
10.719 |
0.36 |
2.5 |
10 |
18 |
2°3′25″ |
2°3′25″ |
SWZ650 |
650 |
590 |
520 |
542 |
55 |
165 |
16 |
M30×140 |
2000 |
120 |
8.507 |
4.117 |
11.354 |
0.36 |
2.5 |
10 |
18 |
2°3′25″ |
2°3′25″ |
SWZ700 |
700 |
640 |
560 |
392 |
60 |
175 |
18 |
M30×150 |
2000 |
120 |
9.162 |
5.017 |
13.153 |
0.36 |
2.5 |
10 |
18 |
2°3′25″ |
2°3′25″ |
SWZ750 |
750 |
690 |
600 |
642 |
65 |
185 |
18 |
M30×160 |
2000 |
120 |
9.816 |
5.915 |
14.95 |
0.36 |
2.5 |
10 |
18 |
2°3′25″ |
2°3′25″ |
SWZ800 |
800 |
730 |
640 |
672 |
70 |
210 |
18 |
M36×180 |
3500 |
144 |
8.726 |
4.328 |
11.956 |
0.45 |
2.5 |
15 |
18 |
1°43′ |
1°43′ |
SWZ850 |
850 |
780 |
680 |
722 |
70 |
210 |
18 |
M36×180 |
3500 |
144 |
9.271 |
5.076 |
13.453 |
0.45 |
2.5 |
15 |
20 |
1°43′ |
1°43′ |
SWZ900 |
900 |
820 |
740 |
752 |
80 |
235 |
18 |
M42×200 |
5800 |
144 |
9.816 |
5.825 |
14.95 |
0.45 |
2.5 |
15 |
20 |
1°43′ |
1°43′ |
SWZ950 |
950 |
870 |
780 |
802 |
80 |
235 |
18 |
M42×200 |
5800 |
144 |
10.362 |
6.575 |
16.451 |
0.45 |
2.5 |
15 |
20 |
1°43′ |
1°43′ |
SWZ1000 |
1000 |
900 |
840 |
822 |
90 |
280 |
20 |
M48×240 |
9000 |
180 |
8.726 |
4.058 |
11.956 |
0.72 |
2.5 |
15 |
20 |
2°44′43″ |
— |
SWZ1100 |
1100 |
1000 |
920 |
922 |
95 |
280 |
20 |
M48×240 |
9000 |
180 |
9.598 |
5.257 |
4.354 |
0.72 |
2.5 |
15 |
25 |
2°44′43″ |
— |
SWZ1200 |
1200 |
1080 |
1000 |
992 |
110 |
335 |
20 |
M56×280 |
14000 |
180 |
10.471 |
6.456 |
16.751 |
0.72 |
2.5 |
15 |
25 |
2°44′43″ |
— |
|
